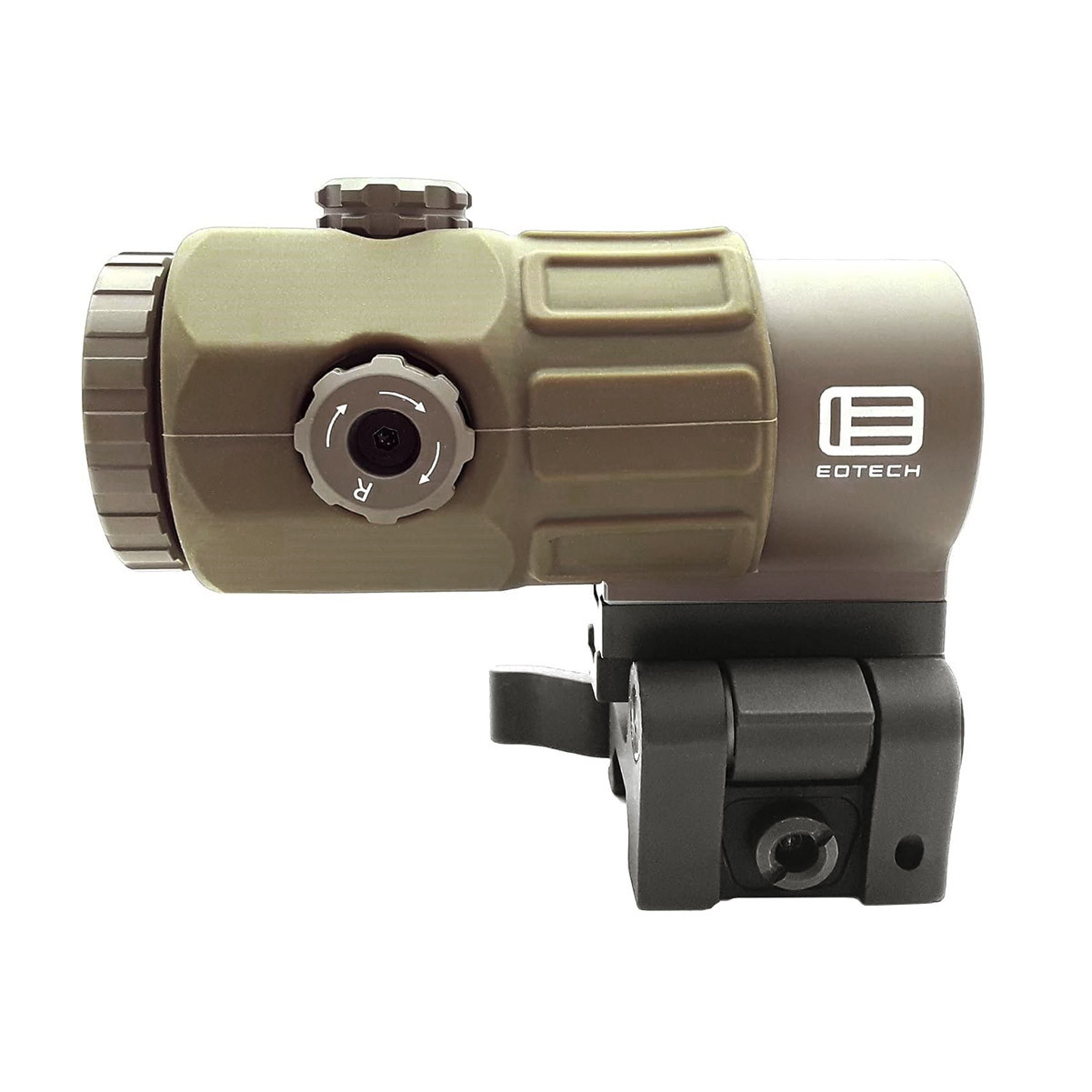

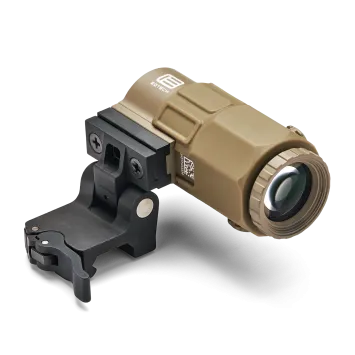

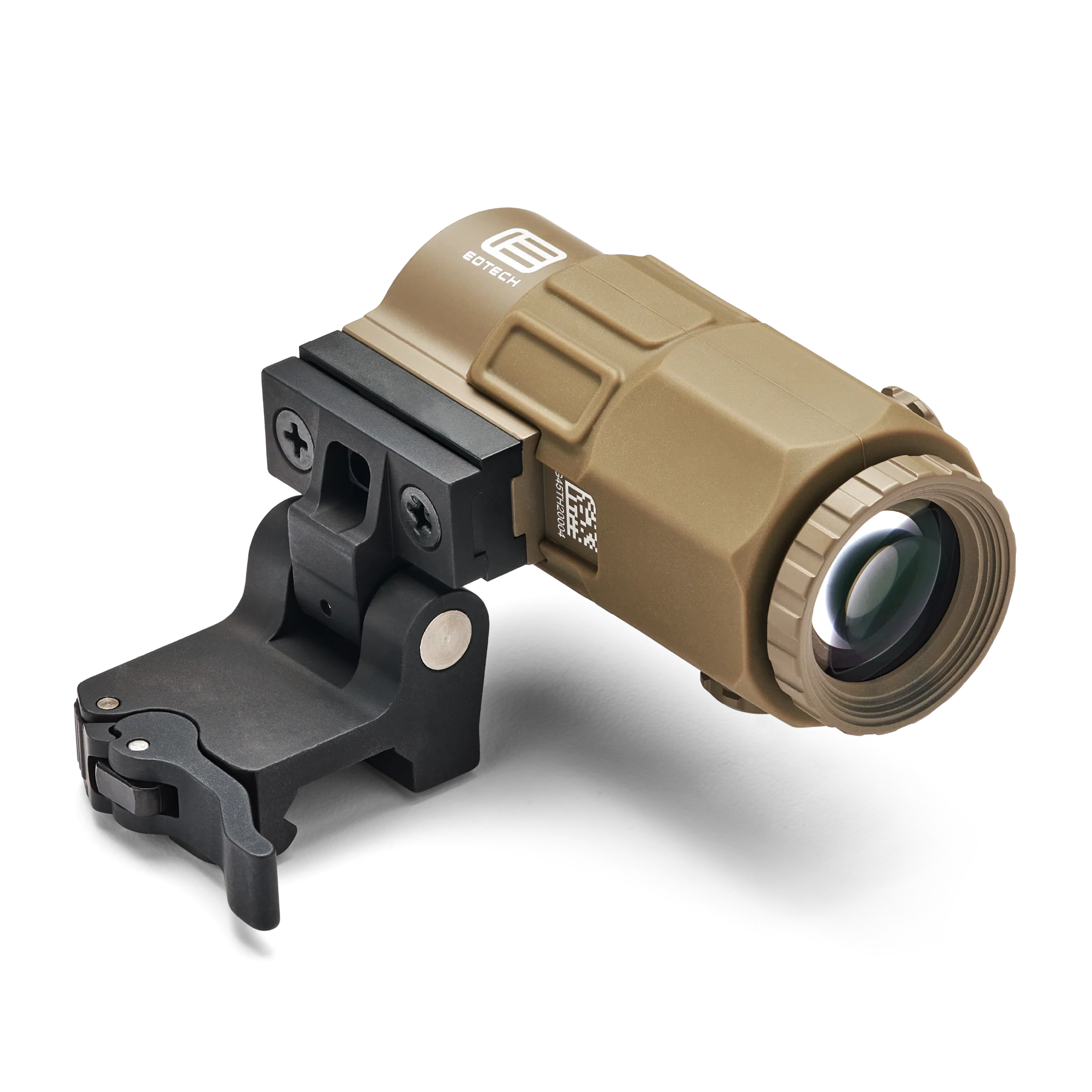

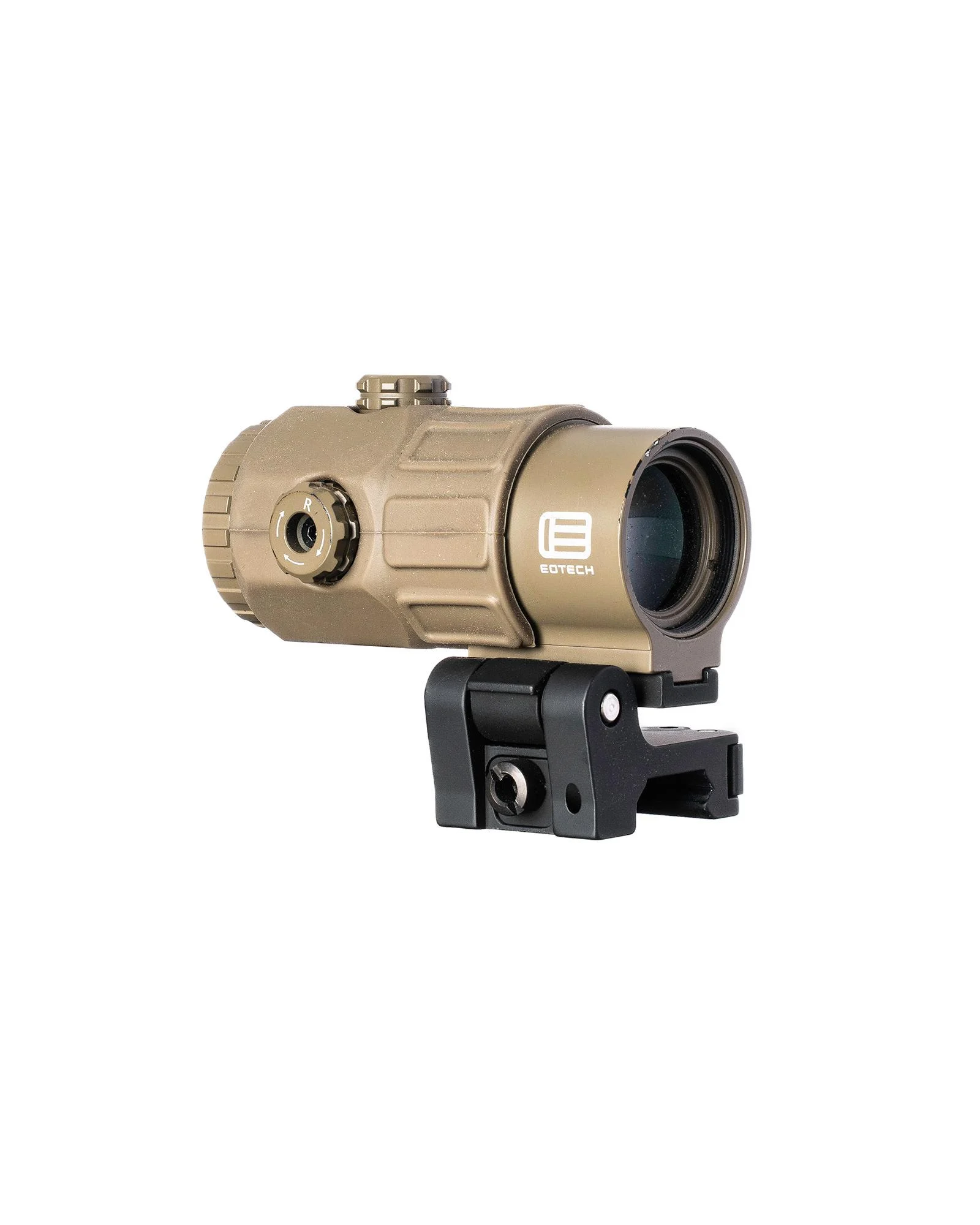

EOTech G45.STSTAN 5x Magnifier
The EOTech G45.STSTAN is a fixed 5x magnifier designed for use with compatible holographic weapon sights. It provides a magnified viewing option while retaining the ability to use the primary sight without magnification.
This model features an STS (Switch-to-Side) mounting system, allowing the magnifier to be moved laterally out of the optical path when magnification is not required. The system is designed for compatibility with 1-inch Weaver and MIL-STD-1913 rails.
The G45 magnifier features adjustable horizontal and vertical alignment, an adjustable diopter and fog-resistant internal optics. The unit has an eye relief of 66 mm (2.6 inches) and a 4.4° field of view
Mounting | STS (Switch-to-Side) |
Rail Compatibility | 1" Weaver / MIL-STD-1913 |
Weight with STS Mount | 362.9 g / 12.8 oz |
Weight without Mount | 269.3 g / 9.5 oz |
Dimensions (L × W × H) | 99 × 58.4 × 83.8 mm / 3.9 × 2.3 × 3.3" |
Water Resistance | Up to 10 m / 33 ft depth |
Internal Optics | Fog-resistant |
Operating Temperature | −40°C to +60°C / −40°F to +140°F |
Adjustments | Tool-free horizontal and vertical adjustment |
Rail Attachment | Quick-detach |
Compatibility | EOTECH HWS models |
Country of Origin | Assembled in USA |
