Hikmicro Lynx Pro LH19 Thermal Camera

Hikmicro Lynx Pro LH19 Thermal Camera Monacular

1.330,00
x
Stock
Stock:
  2  In stock
Item No.: Hikmicro Lynx Pro LH19

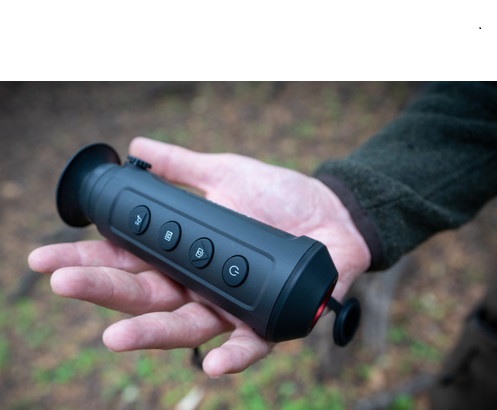

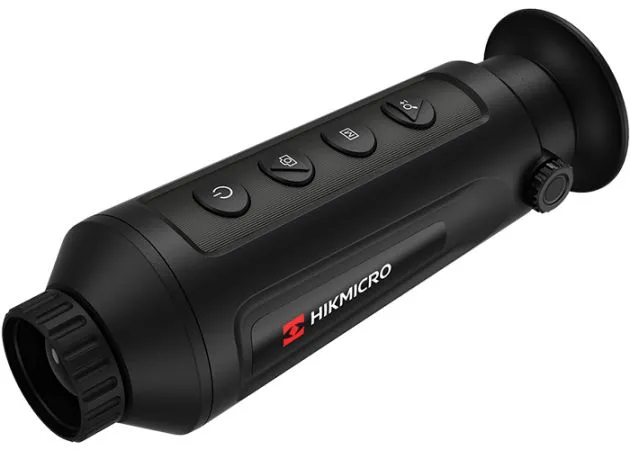

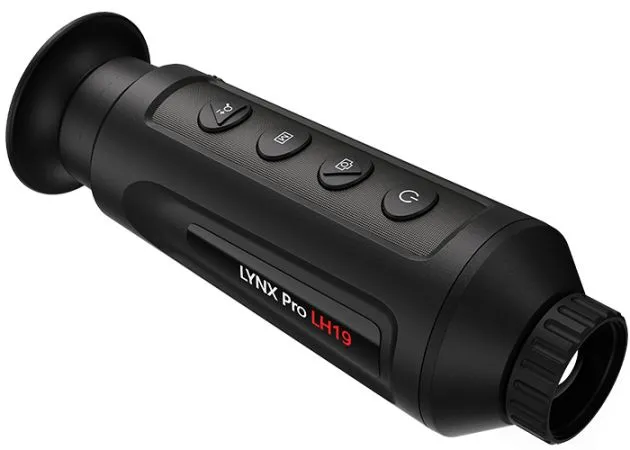

HIKMICRO LYNX Pro LH19 handheld thermal monocular camera is equipped with a 384 × 288 infrared detector and a 1280 ×
960 LCOS display.

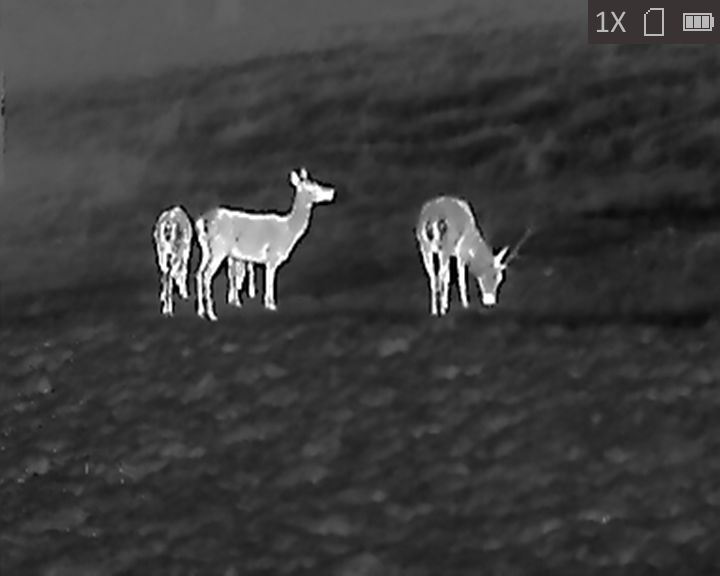

It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity
built-in thermal detector provides you with clear view even in total darkness.

The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, and hunting, etc.

384 × 288 resolution, 12 μm, high sensitivity detector
Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
1280 × 960 resolution 0.4-inch LCOS display
Built-in rechargeable lithium battery
Up to 7.5 hours continuous running
Wi-Fi hot spot
Type-C Interface

Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD 35 mk (@25°C), F#=1.0
Lens (Focal Length) 19 mm
Field of View: 13.8° × 10.4° (H × V)
Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×
Aperture: F1.0
Magnification: 1.86 to 14.88
Monitor 0.4 inch, LCOS, 1280 × 960
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes: Black Hot, White Hot, Red Hot, Fusion
Frame Frequency: 50 Hz
Wi-Fi Hot Spot: Yes
Standby Mode: Yes
Detection Range: 897 m
Storage: Built-in memory module (8 GB)
Record Video: Yes
Capture Snapshot: Yes
Battery Type: Lithium battery
Battery Operating Time: 7.5 hours continuous running with Wi-Fi hot spot function off (@25°C)
6 hours continuous running with Wi-Fi hot spot function on (@25°C)
Battery Capacity Display: Yes
Power: 5 VDC/2 A, 1.5 W, Type-C Interface
Working Temperature: -20 °C to 55 °C (-4 °F to 131 °F)
Protection Level: IP67
Dimension: 171 mm × 61 mm × 57 mm (6.73" × 2.40" × 2.24")
Weight: 310 g (0.68 lbs)

Hikmicro-Thermal-Camera-Lynx-LH19-Manual.pdf

Hikmicro Lynx Pro LH19 Thermal Camera does not have any reviews yet. Share your experiences and post a review.
Hikmicro Lynx Pro LH19 Thermal Camera


Article numbers
EAN:
6974004640071
SKU:
HM-TS03-19XG/W-LH19
