EGW S&W Revolver Red Dot Mount Vortex Venom

EGW S&W facory drilled revolvers Red Dot Mount Vortex Venom
Vortex Viper / Venom S&W revolver Sight Mount (fits Burris FastFire and Docter)

85,00
x
Stock
Stock:
  5  In stock
Item No.: EGW49319

Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot
Sightmark Core Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-32 Set Screw

This sight fits (including but not limited to):
Smith & Wesson revolvers produced after 1993:
Smith & Wesson K Frame Revolvers
Smith & Wesson L Frame Revolvers
Smith & Wesson N Frame Revolvers
Smith & Wesson X Frame Revolvers

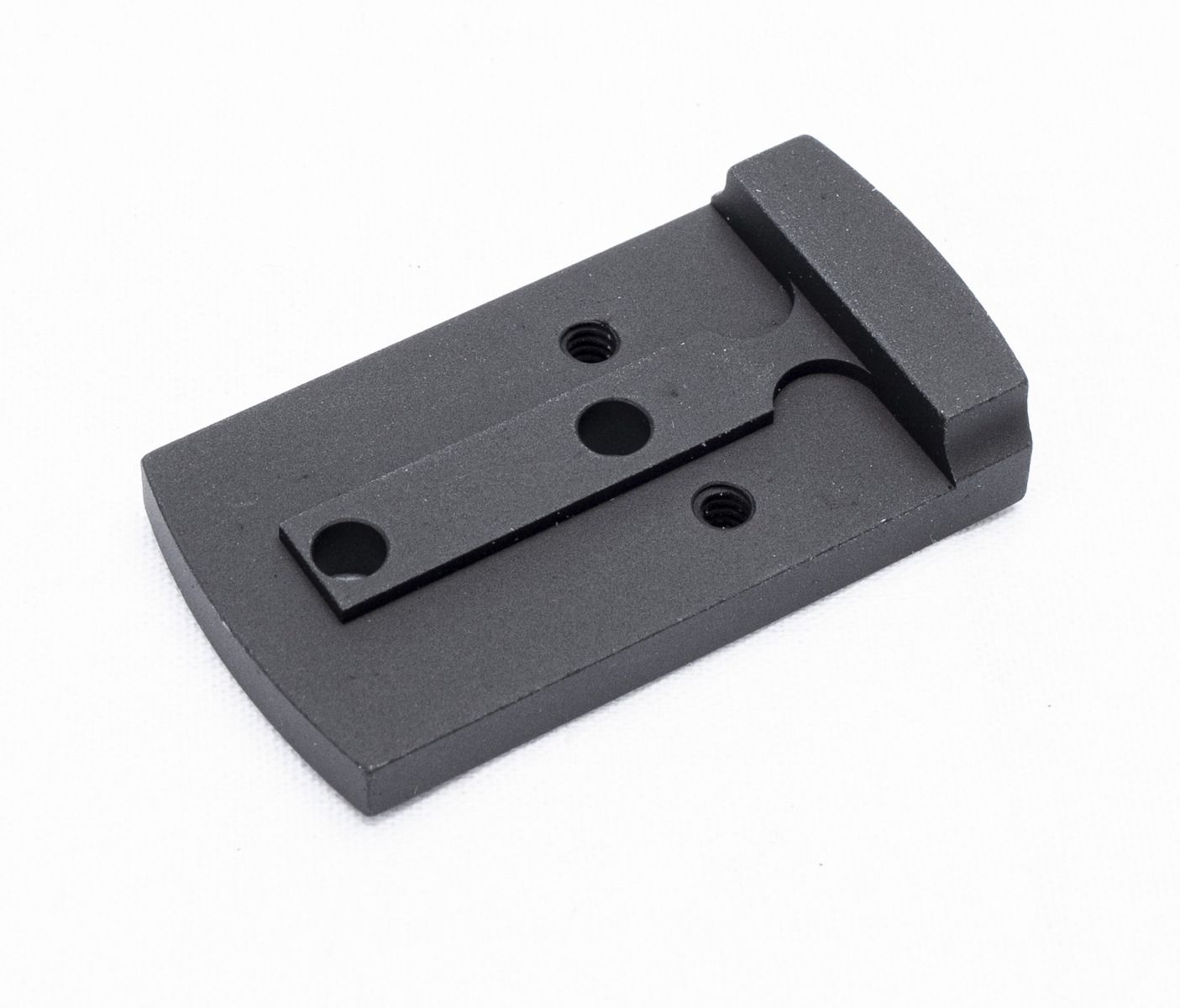

This mount is now updated to use 2 of the 3 holes on the top strap of the revolver. It does not use the front hole.

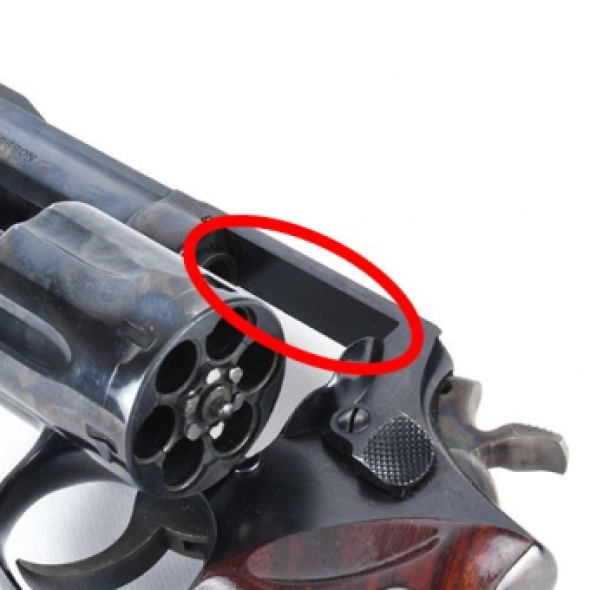

If your revolver is not drilled and tapped this mount will not work (pre 1993). The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not (like the above image) this mount will not work

Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.811"
Overall Width: .99"
Torque Specs: 15 in/lbs

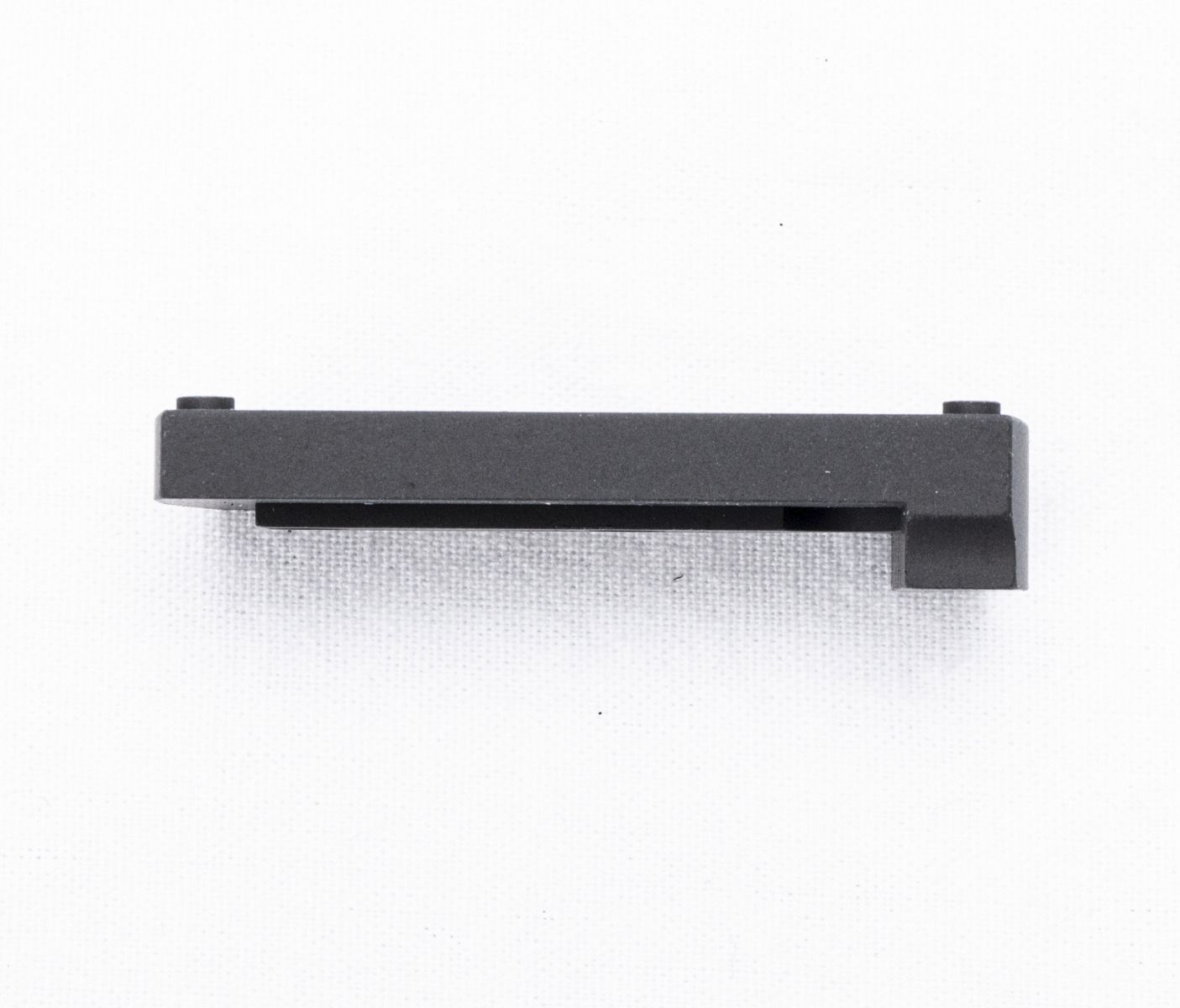

Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

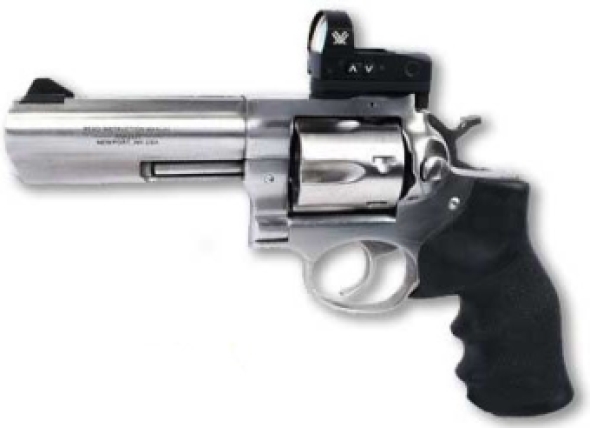

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.

Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs

2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights
2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights

Modification of your firearm may nullify the manufacturer's warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
