Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot
Sightmark Core Shot

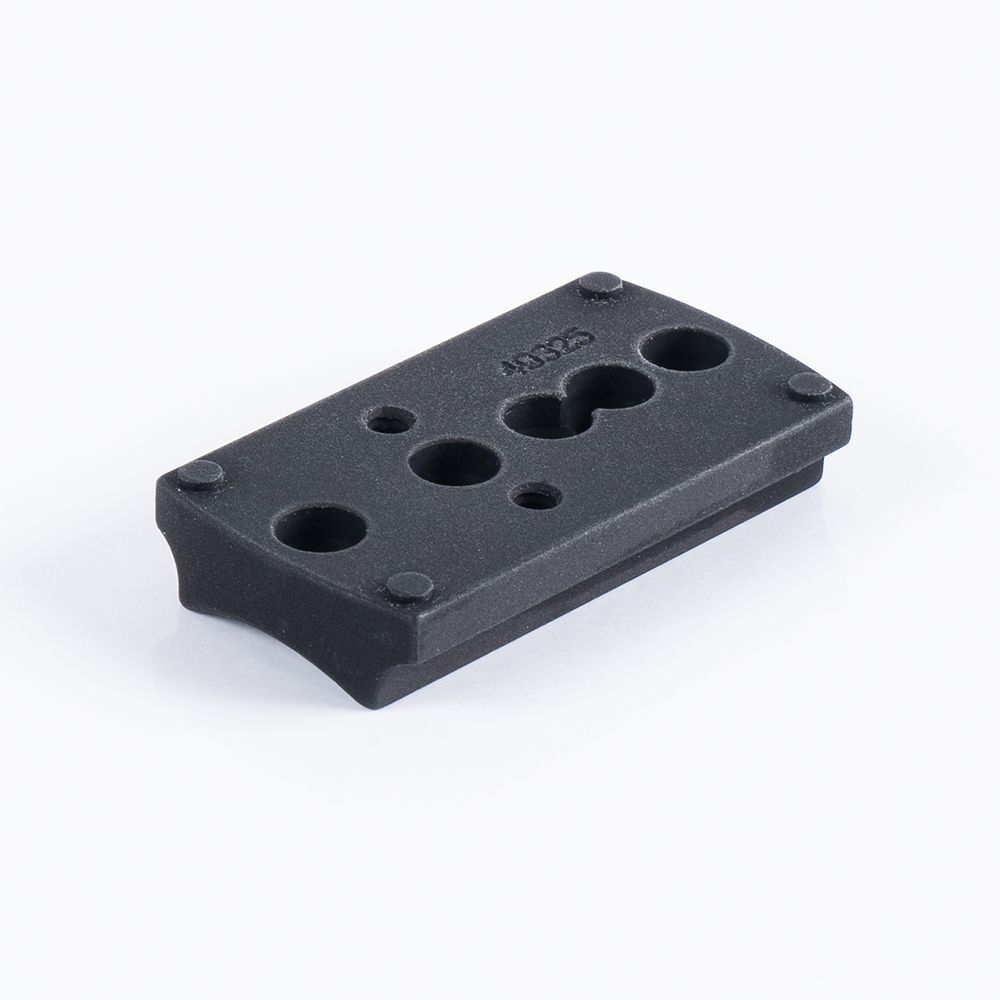

This mount has a bottom radius of .670". There should be a slight gap at the top of the radius between the receiver and the mount when mounted.
Common Applications:
Shotgun:
Benelli Auto / Super Black Eagle / Vinchi, M2 (Will Work in the Front Set Only, 8-40 Screws)
Benelli Supernova (Will Work in the Front Set Only, 8-40 AND Longer Screws)
Browning A-Bolt 12 Gauge
Franchi Affinity

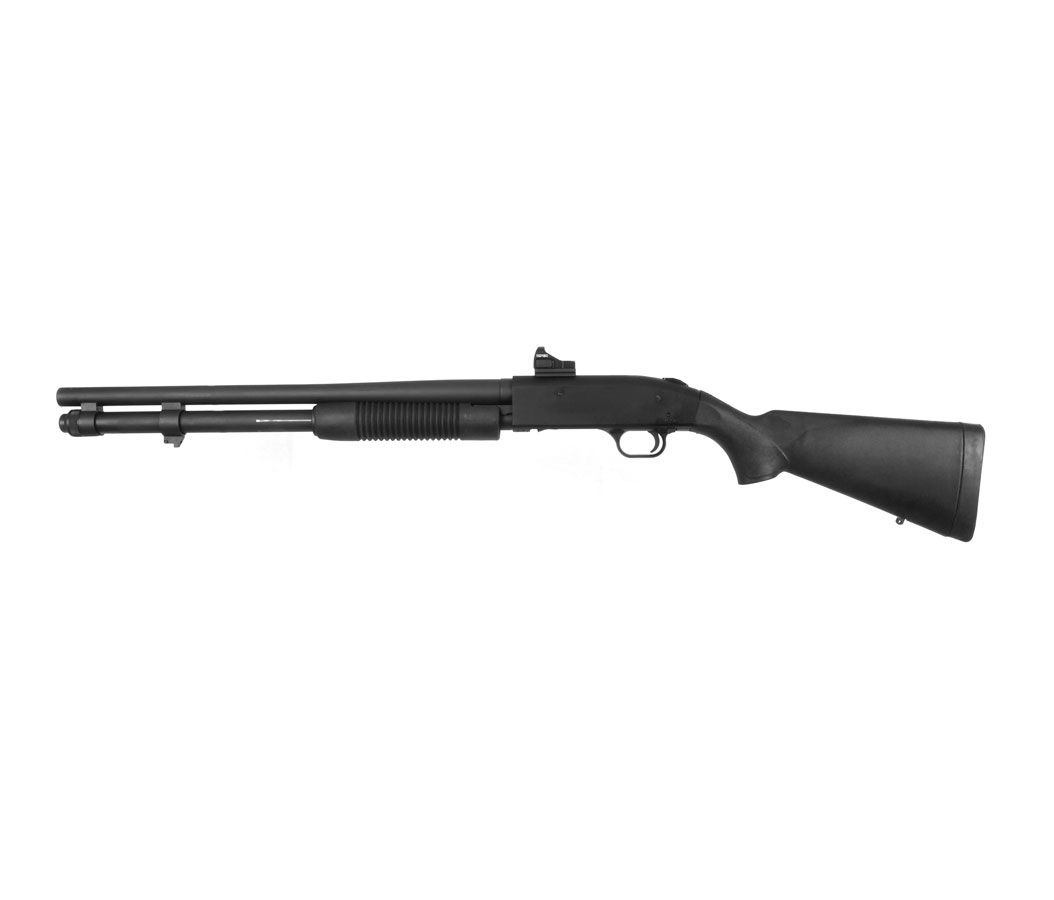

Mossberg 500, 590, 835, 930, 935 Pre '97
Mossberg 500, 590, 835, 930, 935 Late (after '97) (Requires 8-40 and Longer Screws)
Remington 870
Remington 1100
Remington 1187
Savage 210
Savage 212
Savage 220
Stoeger M3000 / Stoeger M3500 (Will Work in the Front Set Only, 8-40 Screws)
Winchester 1300
Winchester SXP
Rifle:

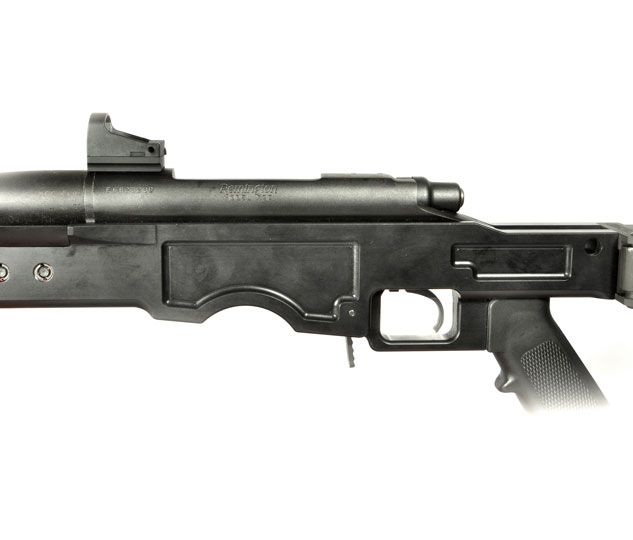

Remington 700, 722, 40x
Remington 783
Remington 710/770
Remington XP 100
Remington 4, 6, 7400, 7615 (Front Set Only, 8-40 Screws)
Savage Arms Centerfire Models
Winchester 70
The screws that are included with this mount require a 5/64'' allen wrench for installation.
Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.811"
Overall Width: .99"
Torque Specs: 15 in/lbs
Radius: .670"

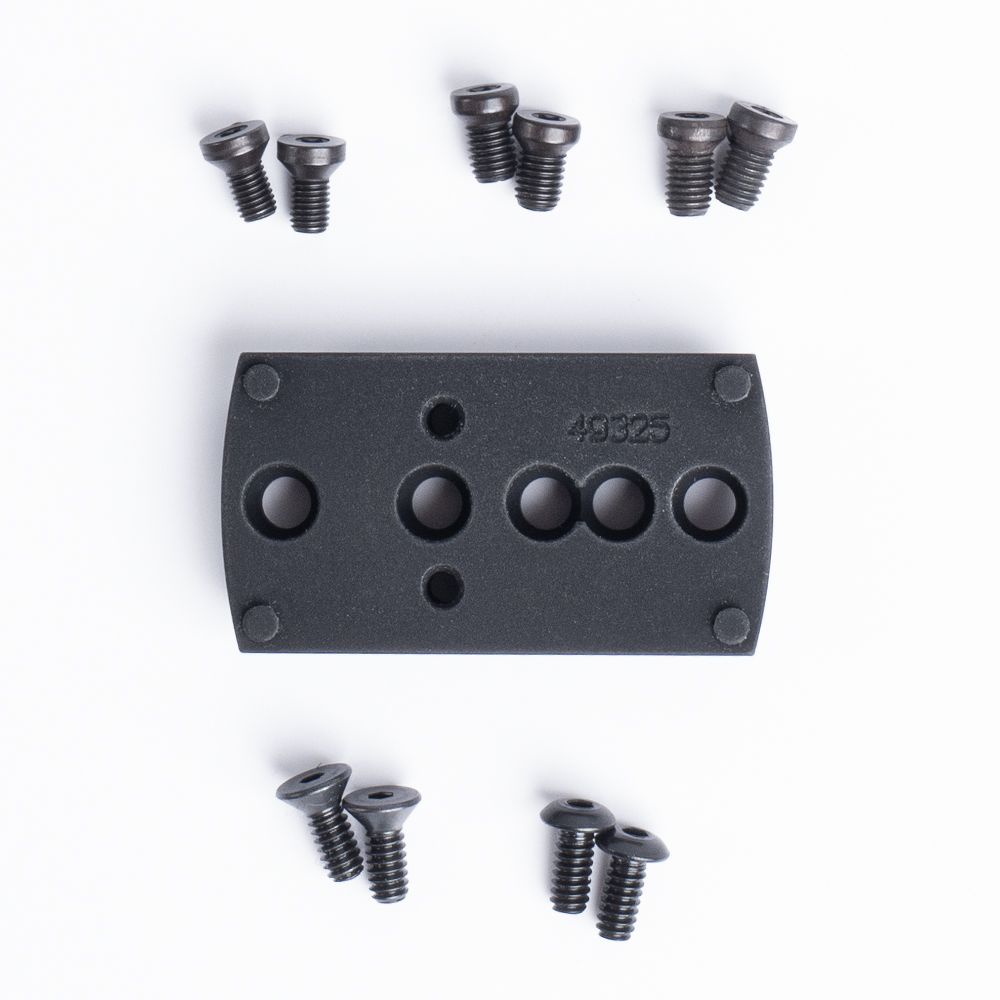

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(2) 6-48 x .313" Torx Head Screw
(2) 8-40 x .313" Torx Head Screw
(2) 8-40 x .330" Torx Head Screw
The four spreads on this mount measure:
.500"-.505"
.600"
.860"
1.4"
